VTC-LP350840 3.7V 80mAh Li-ion Polymer Battery Pack for Bluetooth sensor modules, Miniature IoT data loggers, Wearable electronics

Parameter	Specification
Model	VTC-LP350840
Battery Type	Li-ion Polymer Rechargeable Battery Pack
Nominal Voltage	3.7 V
Nominal Capacity	80mAh (0.2C discharge)
Standard Charging Method	0.2C CC charge to 4.2V, then CV charge until current declines to 0.01C
Standard Charging Current	16mA (0.2C)
Rapid Charging Current	80mA (1C)
Standard Charging Time	6~7 hours
Cell Dimensions	3.5mm initial max. thickness x 8.0mm max. width x 40.0mm max. height
Connector	MOLEX/510210200
Protection IC	S8261DAA-M6T1U
MOSFET	8205
Cycle Life	≥600 cycles to 80% of rated capacity under specified 0.2C test conditions

✓Certification supportCB, CE, UL, UN38.3, MSDS, IEC61000, IEC62133, EU2023/1542

Request a quotationDatasheet unavailable

Product overview

80mah lithium ion polymer for RC Models, Drones, and Smart Devices | Battery Manufacturers in China & Battery Supply Factory

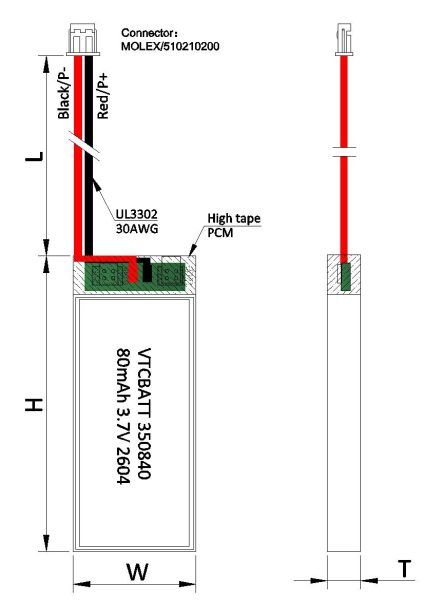

The VTC-LP350840 is a compact Li-ion polymer battery pack designed for rechargeable low-current electronics that require a slim protected power source. The datasheet specifies 3.7V nominal voltage, 80mAh nominal capacity, 85mAh rated capacity, 75mAh minimum capacity, 4.2V limited charge voltage, 3.0V discharge cut-off voltage, 16mA standard charge and discharge current, and 80mA rapid charge or maximum discharge current. The pack dimensions are 3.7mm max. thickness, 8.0mm max. width, and 42.0mm max. height, with 30+/-3mm UL3302 30AWG wires and a MOLEX/510210200 connector.

Its protection circuit uses an S8261DAA-M6T1U protection IC and 8205 MOSFET, supporting over-charge, over-discharge, over-current, and short-circuit protection functions according to the PCB specification. VTCBATT supplies this lithium polymer battery pack for OEM/ODM projects, sample development, connector and wire matching, label customization, factory-direct batch production, and battery wholesale programs for device manufacturers and distributors.

01

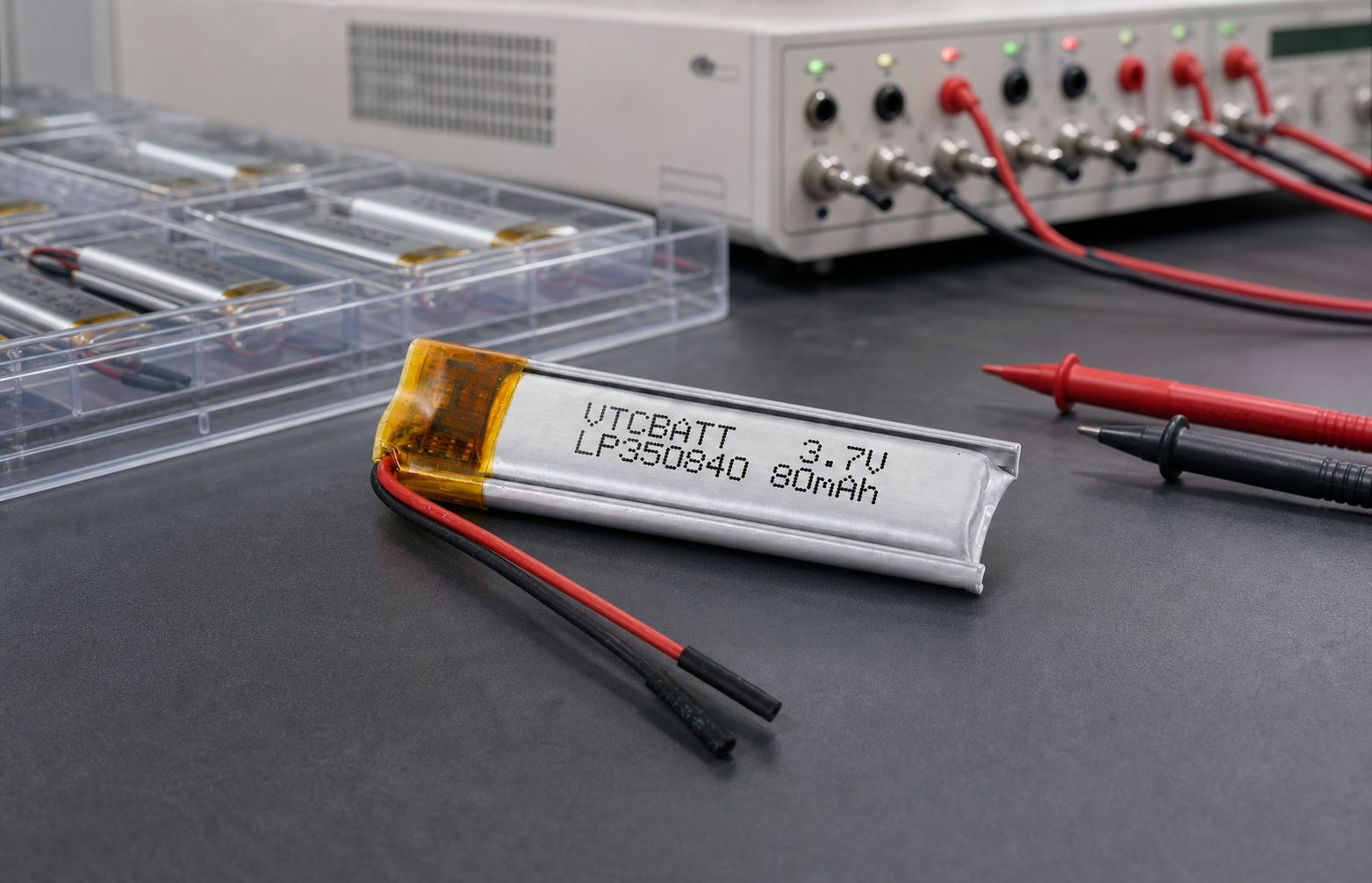

600 Cycle Design

The datasheet specifies not less than 600 cycles under 0.2C charge/discharge test conditions until capacity reaches 80% of rated capacity.

02

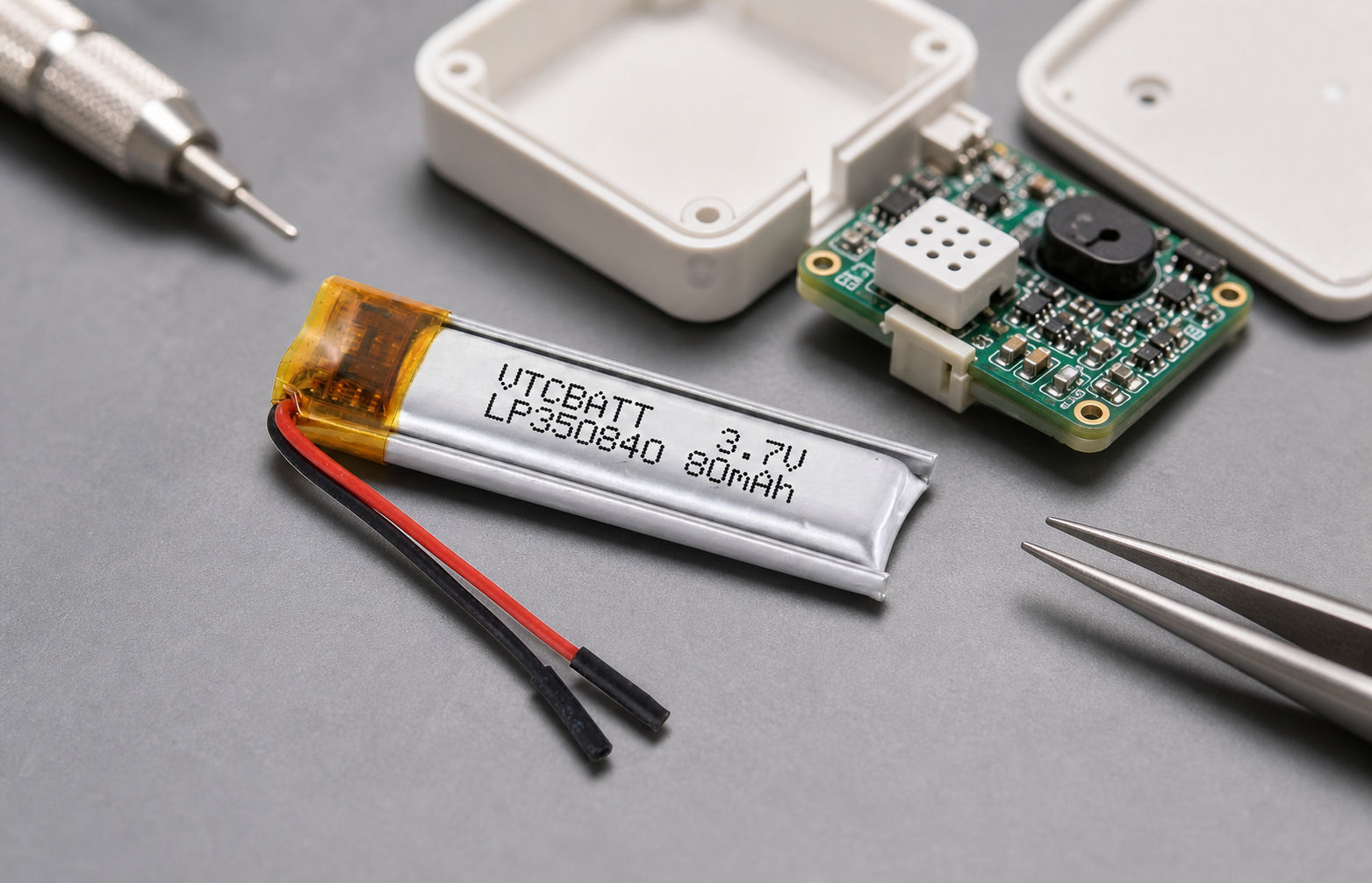

Compact Protected Pack

The VTC-LP350840 pack combines a thin 3.7mm max. profile with S8261DAA protection IC, 8205 MOSFET, 30AWG wires, and a MOLEX/510210200 connector.

03

OEM Assembly Ready

The protected wire-and-connector pack format supports OEM/ODM matching for small devices that need defined connector, wire, label, and pack integration.

Technical insight

Product and application details

bluetooth sensor modules

The slim 3.5mm thickness allows this pack to fit snugly inside compact Bluetooth sensor housings without adding bulk.

Electronic tags

With a nominal voltage of 3.7V, this LiPo cell provides stable energy for low-power electronic tag operations.

Miniature IoT data loggers

Its 80mAh capacity supports intermittent data logging bursts while maintaining a small footprint within miniature IoT enclosures.

OEM prototype electronics

Engineers can easily integrate this standard MOLEX connector into rapid prototyping stages for custom electronic devices.

Rechargeable LED indicator products

The 1C rapid charging current enables quick power replenishment for LED indicators used in frequent cycle applications.

Remote control units

Integrated protection ICs ensure safe operation for remote controls that require consistent 3.7V output during use.

Smart pen devices

The narrow 8.0mm width fits seamlessly into the slender barrel of smart pen devices for writing.

Wearable electronics

Long cycle life of 600 cycles ensures durability for wearable electronics subjected to daily charging routines.

The VTC-LP350840 is a compact Li-ion polymer battery pack designed for rechargeable low-current electronics that require a slim protected power source. The datasheet specifies 3.7V nominal voltage, 80mAh nominal capacity, 85mAh rated capacity, 75mAh minimum capacity, 4.2V limited charge voltage, 3.0V discharge cut-off voltage, 16mA standard charge and discharge current, and 80mA rapid charge or maximum discharge current. The pack dimensions are 3.7mm max. thickness, 8.0mm max. width, and 42.0mm max. height, with 30+/-3mm UL3302 30AWG wires and a MOLEX/510210200 connector. Its protection circuit uses an S8261DAA-M6T1U protection IC and 8205 MOSFET, supporting over-charge, over-discharge, over-current, and short-circuit protection functions

The VTC-LP350840 is a compact Li-ion polymer battery pack designed for rechargeable low-current electronics that require a slim protected power source. The datasheet specifies 3.7V nominal voltage, 80mAh nominal capacity, 85mAh rated capacity, 75mAh minimum capacity, 4.2V limited charge voltage, 3.0V discharge cut-off voltage, 16mA standard charge and discharge current, and 80mA rapid charge or maximum discharge current. The pack dimensions are 3.7mm max. thickness, 8.0mm max. width, and 42.0mm max. height, with 30+/-3mm UL3302 30AWG wires and a MOLEX/510210200 connector.

Its protection circuit uses an S8261DAA-M6T1U protection IC and 8205 MOSFET, supporting over-charge, over-discharge, over-current, and short-circuit protection functions according to the PCB specification. VTCBATT supplies this lithium polymer battery pack for OEM/ODM projects, sample development, connector and wire matching, label customization, factory-direct batch production, and battery wholesale programs for device manufacturers and distributors.
